Flow Interlock Box
- Product Details
- Technical Specifications
- Installation
An Automated and Manual Flow Interlock

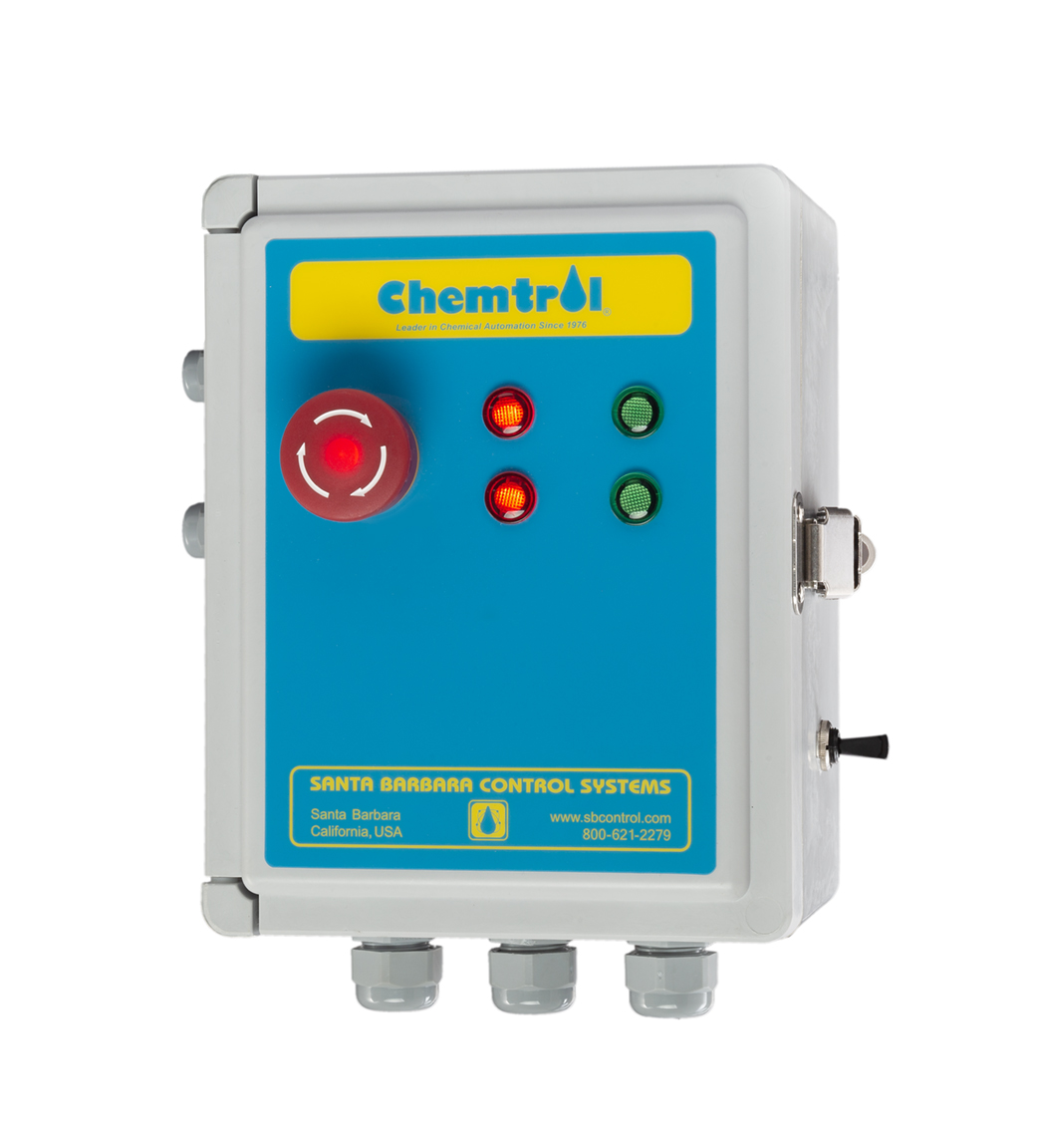

The CHEMTROL® Flow Interlock Box (FIB) is a safety tool to ensure that water circulation is occurring at any time when a device is powered to control water parameters. This is a redundancy-level, power-interlock device that can automatically or manually shut off control in case of a lack of flow.
Multiple outputs can connect through the Flow Interlock Box. These outputs will only be relayed to feed devices if the N.O. input sensor of the Flow Interlock Box indicates that flow exists. As long as the Flow Interlock Box is powered and the input flow sensor indicates flow, then connections are made between the controller and individual feed devices. A green light indicates flow and that connections for control are enabled. A red light indicates a lack of flow and that connections for control are disabled. Connections can also be immdeiately disabled manually by pushing the red halt button, dis-enabling connections and indicating so with the red light.
Useful for interlocking:
PC7000 Technical Specifications
-
The Flow Interlock Box can be scaled and is flexible in its use. It is available with one or two inputs and two to four DPDT interlock relays. These interlock relays can enable / disable a variety of connections.
- FIB 14 – One in, four out
- FIB 18 – One in, eight out
- FIB 28 – Two in, eight out
Options
Flow Interlock Box Installation
Installation of the CHEMTROL® Flow Interlock Box is simple, integrating into a standard bypass line. The internal 24VDC power supply can be powered by 100 to 240VAC. The input sensor can be any N.O. switch rated for 24VDC. Contacts of the standard interlock relays are rated for up to 250VAC at 8 Amps. Interlock relays are DPDT and rated for up to 250VAC at 8 Amps.

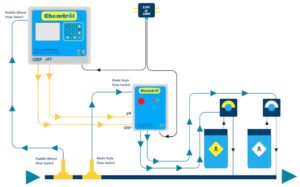

Bypass line assembly, Flow Interlock Box
